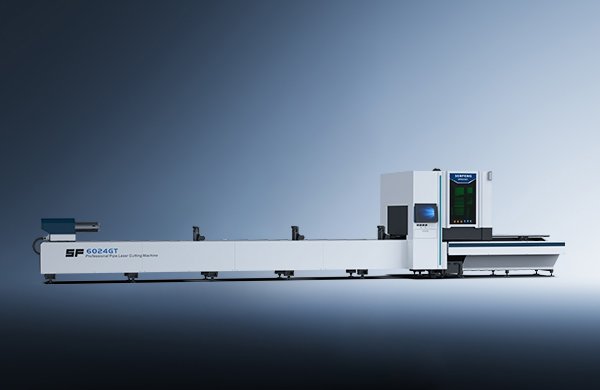

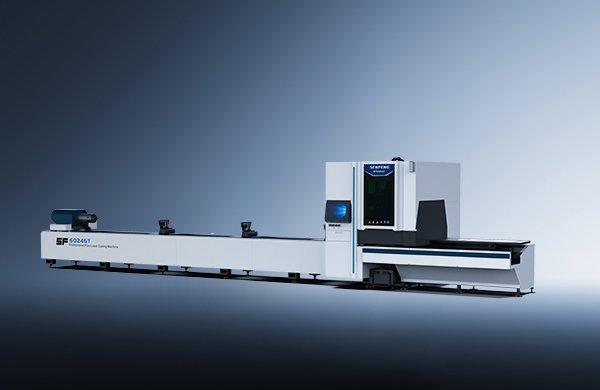

6m Beveling Laser Tube Cutting Machine GT Series
This machine, with double chucks, can bevel various tubes within ±45°, facilitating seamless welding. Both conventional and special-shaped tubes are easily cut.
3-6 [kW] Laser power
6000 [mm] Max length of tube
360 [mm] Max size of tube
700 [kg] Max weight of tube
Competitive Strengths
Performance Benefits
GT series can cut most of metal tubes available on market, including conventional and special-shaped tubes. In this way, users will break through tube limitation, expand work scope and sharpen their competitive edges.
- Cut tubes of various sizes
* Tube length: 6000mm
* Round tube: Φ50~360mm, square tube: □50*50~360*360mm, rectangular tube: diagonal line/side length≤360mm
- ±45° bevel cutting
The machine can cut tubes into ±45° bevel in one go. With less procedures, tube cutting efficiency will be greatly raised.
- Ultra-short tailing
With unique small tailing craft and precision self-centering chucks, tubes may not only be clamped at high precision, but also facilitate the tube cutting with much shorter tailing.
- Wide range of applications
It is used to cut round, square, rectangular, oval tube, I-beam, as well as channel, angle tube, C-profile and H-shaped steel at high precision.
Mechanical Benefits
- Tried-and-tested design
The whole machine uses semi-enclosed structure to keep your operation safe and comfortable. For some models, control console is highly integrated with distribution cabinet, at a high level of integration.
- Right-angled laser cutting head
* Take intelligent monitoring of temperature and gas leakage
* Anti-collision bracket is available to protect optical interface and wirecable, so as to reduce the likelihood of return to factory.
- Double pneumatic chucks
For front chuck, inner bore is in the shape of square to contain larger-sized square and rectangular tubes. Rear chuck is designed as extended barrel style to go deep into the front chucks, for much shorter tailing.
- High-standard machine tool
* It is precisely welded together, featuring high stability, shock absorption and durability.
* Through fine welding, annealing stress relief, secondary aging treatment, as well as precision finishing, it will be full of high rigidity and long service life.
- Servo follow-up support
* It can make tube center and chuck center coaxial automatically and always keep itself cling to tube surface, so that even long tube is well supported.
* Its segmented structure will avoid low cutting precision caused by long tube sagging.
- Turning plates for unloading
After cutting, turning plates are used for automatic unloading. Finished products fall down in the receiving rack and will be separated from scraps thanks to auto sorting system, with no manual intervention.
Control System Benefits
The bus-based CNC system, with simple interface, is easy to operate and learn because of its high degree of intelligence. It can also support files in igs, sat, jhb and other formats.
- Automatic nesting
Raise tube utilization rate and save raw materials to the utmost
- 7-axis pulling
Innovative craft for dynamic cutting with 0 tailing
- Real-time deviation compensation
Lower demands on tube quality and raise piercing precision sharply
Get In touch
Technical Parameters
Model | SF6024GT | SF6035GT |
Laser Power (kW) | 3-6 | 3-6 |
Max Length of Tube (mm) | 6000 | 6000 |
Scope of Tube Size (mm) | Φ50~230 □50*50~230*230 | Φ50~360 □50*50~360*360 |
Max Weight of Tube (kg) | 260 | 700 |
X/Y-axis Positioning Accuracy (mm) | ±0.05 | ±0.05 |
X/Y-axis Repositioning Accuracy (mm) | ±0.03 | ±0.03 |
Max No-load Speed (m/min) | 75 | 60 |
Max Rotating Speed of Chucks (r/min) | 100 | 60 |
Overall Dimensions (L*W*H, mm) | 10200*2280*2530 | 10200*2280*2530 |
Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | |
Get In touch
1. Semi-/fully-automatic loading device
* Load 6000mm long tube easily, and also deal with round, square, rectangular tube, as well as angle, channel steel and I beam.
