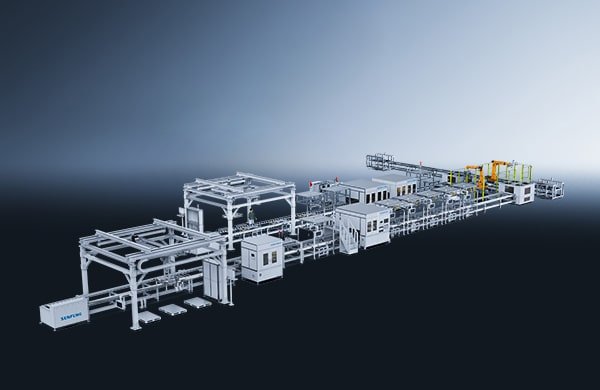

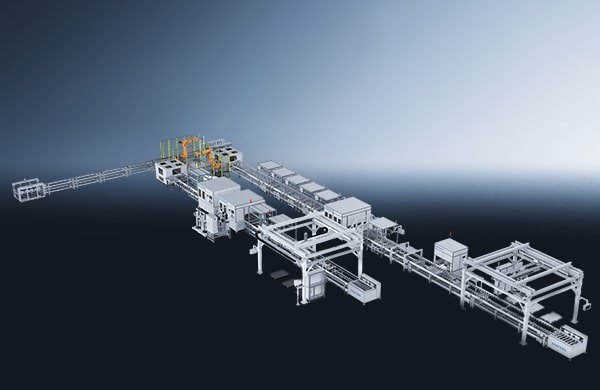

New Energy Battery Module Pack Assembly Line
This module pack assembly line is modular-based and compact in structure. Due to its intelligent management, it is totally traceable. Combined with MES management system, the entire line is always under monitoring to keep all constituent devices stable. Key components are sourced from top brands, enhancing the line’s stability, compatibility, extension and safety.
12~24 [PPM] Total capacity
≥99.5 [%] Final excellent rate
≥90 [%] Machine utilization rate
Competitive Strengths
Performance Benefits
- Assembly automation
* Full automation runs through the entire line thanks to its intelligent robots and technical parameters that are under MES full-closed loop control.
* Each workstation is independently controlled, with AGV interfacing with intelligent warehousing for automatic transport.
- User-based customization
* Equipped with tailor-made control system that can monitor production data in real time, optimize process flows, improve production efficiency and product quality.
* Provide personalized solutions based on specific needs, and ensure its seamless integration with customer’s production system.
- Strict quality control
* Carry out all-sided intelligent quality inspections, incl. appearance, performance and safety tests.
* Build data management system for digital control and easy tracking of each module’s production history and quality.
* Raise production efficiency and reduce human factors’ impact on product quality through automated equipment and intelligent management systems.
- User-friendly operation
* It is ergonomically designed to minimize manual operation and reduce labor intensity.
* Control system interface is simple and intuitive, making it easy to operate and maintain.
* Main display screen centrally shows production data for easy monitoring and management.
Mechanical Benefits
- Reasonable Design
* Front to end automation from assembly, gluing, welding, testing to other key processes
* Its modular-based structure is easy to maintain and keep its running more stable and reliable
* Compatible with various products (fast switch among them), and allow for customization based on customer needs.
- Technological process
* Battery module assembly line
Cell loading & scanning→cell OCV testing→cell/end plate cleaning→gluing or pasting→module stacking→module banding→heating and standing→dielectric voltage withstand test→post terminal addressing→CCS installation→busbar welding→post-weld dust removal→post-weld detection→EOL testing→MES system
* Battery pack assembly line
Pack loading and cleaning & insulating strip pasting→Installation & air-tight test for liquid cooling plate→Pack gluing→Module incasement→Module fastening→Wiring harness copper busbar installation→BMS installation→Top cover installation→Communication cover plate installation→Air-tight test for entire pack→EOL testing→Pack unloading→MES system
- Key spare parts at high quality
* Key components are made of special materials to make sure of their high quality.
* Tooling fixtures are reasonably designed to keep battery cells stable and safe during assembly.
* Advanced laser welding machine can ensure welding quality between battery modules, protect them well and minimize welding defaults.
* Advanced coating/gum topping equipment are used to firmly connect and seal battery modules, in addition, make these modules more resistant to water and dust.
- Safety measures
* Come with safety switch and safety light curtain to prohibit the opening of safety door in operation, and shut down automatically while opening.
* Safety devices such as fuse protector and temperature sensor are installed in battery system to promptly cut off power in case of battery cell abnormality.
* Take strict control of battery charging and discharging to avoid overcharging, over-discharging, and short circuit, so as to keep battery safe.
Control System Benefits
- Collect messages quickly
* It can collect key parameters from each process in real time by using advanced sensor, RFID and wireless communication technology.
* The messages above are transmitted to central control unit for rapid treatment and analysis.
* These messages will be intelligently monitored and analyzed to make sure of safety.
* It also records production process and key parameters, in order to trace back quality and issues.
- Take integrated control
* Its full automation is benefit from advanced automation equipment and technology, which can get efficiency gains and reduce errors and safety hazards caused by manual intervention.
* The system collects, delves into and analyzes big data from production, then, optimizes production processes and parameters based on data analysis results.
* The control system is compatible with various products and allows for further upgrades as need.
- Real-time display
* The system monitors and shows welding parameters, visual inspection, testing parameters, pressure and displacement in real time at work.
* It works with MES system, laser coding and RFID technology to track data for each product.
* At work, machine status is visualized and message interaction is made possible, so, operators are able to check its running state in real time.
Get In touch
Technical Parameters
| Main Parameters | Model |
| New Energy Battery Module Pack Assembly Line | |
| Total capacity | 12~24PPM |
| Final excellent rate | ≥99.5% |
| Machine utilization rate | ≥90% |
| Overall dimensions | Module assembly line: 58*7.5m Pack assembly line: 100*8m |
| Power Supply | Three-phase 380V, 50Hz/60Hz |
Get In touch
1. Intelligent extension
* Due to its modular-based structure, users’ personalized demands and other optional functions are also available.
* New materials and processes are permitted to use to make the production highly efficient. New welding technology also helps to get efficiency gains and high quality.
* Low-energy and low-emission devices or processes can also be utilized to minimize effect on environment and make resources recycling.
