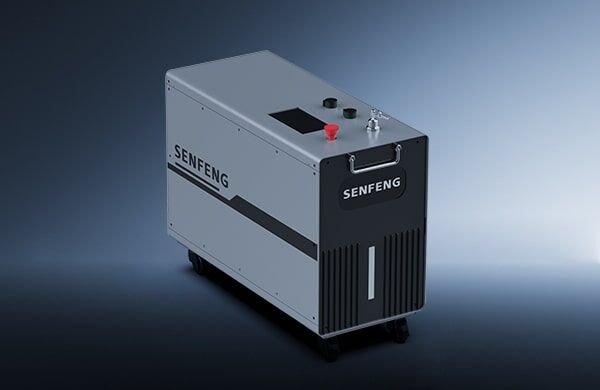

Portable Fiber Laser Welding Machine S Series

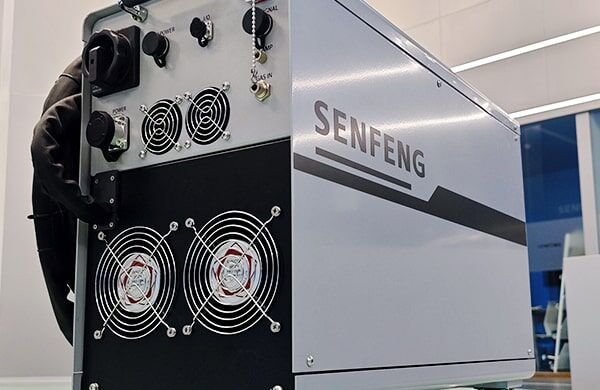

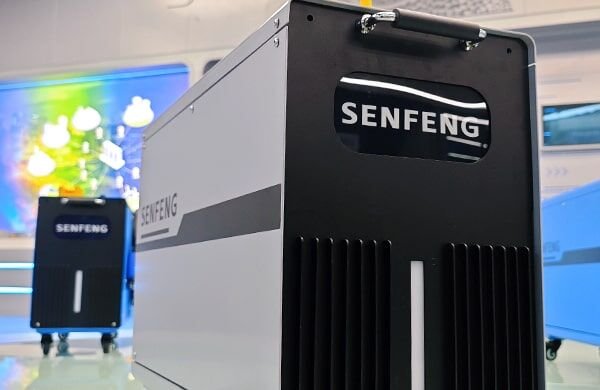

This new product is famous for its unique air-cooled heat dissipation and small structure. That is why it works flexibly, adapts to various workplaces quickly and needs much less costs of transport and storage space. Users will enjoy bran-new welding easily.
0.8-1.5 [kW] Laser power
5 [mm] Max thickness of sheet
≤0.7 [kg] Weight of welding gun
7 [m] Max length of welding gun’s optical fiber
Competitive Strengths
Get In touch
Technical Parameters
| Main Parameters | Model | ||
| SF3S | SF4S | SF5S | |
| Laser Power (kW) | 0.8 | 1.2 | 1.5 |
| Laser Wavelength (nm) | 1080±10 | 1080±10 | 1080±10 |
| Thickness of Welding Sheet (mm) | 3mm | ≤4mm | ≤5mm |
| Diameter of Filler Wire (mm) | 0.8-1.6 (standard) | 0.8-1.6 (standard) | 0.8-1.6 (standard) |
| Weight of Welding Gun (kg) | ≤0.7 | ≤0.7 | ≤0.7 |
| Length of Welding Gun Line (m) | 5 | 7 | 7 |
| Net Weight of Machine (kg) | 45 | 50 | 55 |
| Overall Dimensions (L*W*H, mm) | 670*335*590 | 670*335*590 | 670*335*590 |
| Languages | 24 kinds of languages like Chinese, English, Korean, Russian, Japanese, German, French | ||
| Power Supply | Single-phase 220V, 50/60HZ | ||
Get In touch
1. Intelligent interconnection
I/O autorun interface is reserved to interconnect with welding robot by only pressing a button. We try to get it smarter and more automatic. With it, you will enjoy welding you never had before.
Get In touch
What is laser welding machine and how does it work?
A laser welding machine is a device used for welding materials. It has a high power density and fast energy release, making its welding efficiency superior to other traditional welding patterns. Whether welding the same type or different materials, it is unnecessary to carry out secondary treatment. Its emergence has led to a large leap in welding technology.
Laser welding utilizes high-energy laser beam to locally heat small areas of materials. The energy from laser radiation quickly diffuses into the material through thermal conduction, melting the material to form a specific molten pool for welding purpose.
What kinds of welding machines can Gecnclaser produce?
Currently, GECNCLASER can offer more than 10 kinds of different welding machines for customers worldwide. According to degree of automation, we have handheld and robot-assisted machines. Based on cooling mode, there are air-cooled and water-cooled types. With regard to heat source, laser welding and electric-arc welding are available now. Customers may make decision or apply for customization as needed.
What types of welding can laser welding achieve?
Main welding types include butt welding, overlay welding, stitch welding, stud welding, T-joint welding, internal & external corner welding and seal welding. It has advantages such as deep welding depth, narrow width, small heat-affected zone, minimal deformation and fast welding speed.
What are the main applications of laser welding?
Laser welding uses laser beam as heat source. The main objects of welding are thin-walled materials and precision parts, such as stainless steel, carbon steel, mold steel, copper, aluminum, gold and silver. It can also repair defects such as wear, pore, sand hole, crack, scratch, deformation, and reduced hardness in workpieces.
What is the warranty period of laser welding machine?
The complete machine is under 1-year warranty. Its main accessories and consumables will be replaced depending on their specific service life. We also provide original accessories for global users, with quotes available within 24h and delivery within 3-7 working days. The change of these accessories will be given priority to our nearby subsidiaries or local service centers.
