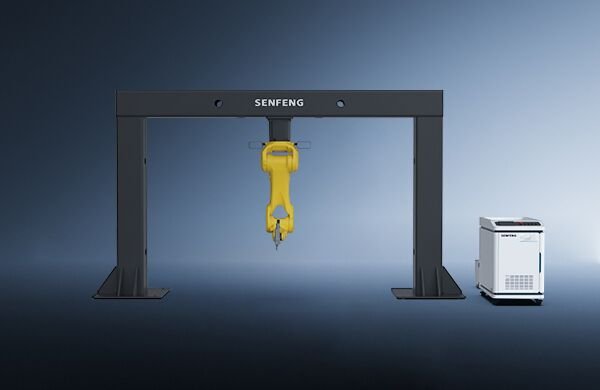

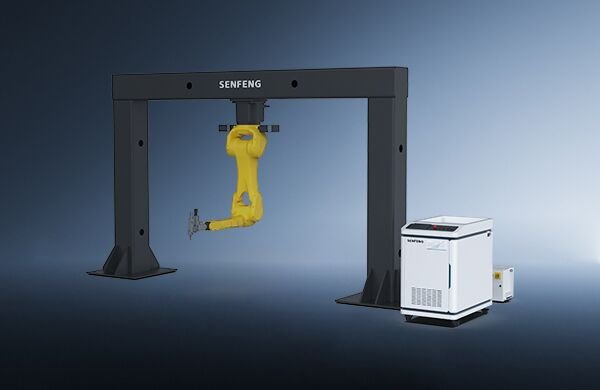

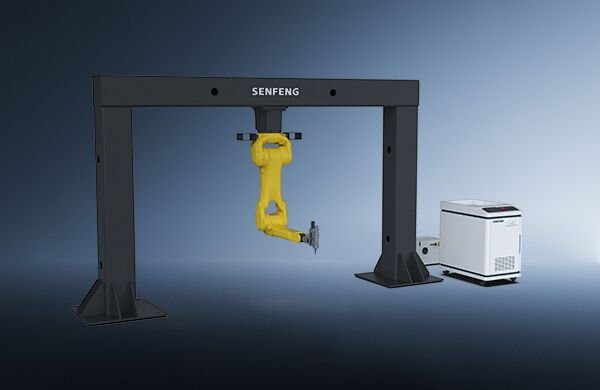

FANUC 3D Robotic Laser Cutting Machine RC Series
This highly integrated machine is compact in size and small in footprint. It is made up of vertical structure, FANUC precision robot and 3D laser cutting head, and mainly direct to workpieces of small size, various shapes and complex structure.
1.5-20 [kW] Laser power
16 [mm] Max cutting thickness
1853 [mm] Robot armspan
360 [°] cutting at will
3D Laser Cutter RC Series
Competitive Strengths
This compact-type machine is designed for cutting small-sized workpieces. It combines precision cutting technology with automated processes, enabling fast and efficient batch job completion.
Performance Benefits
- 3D Cutting: Operates flexibly in 3D space; suitable for cutting workpieces of complex shapes and structures.
- High Precision: Equipped with an advanced visual system for workpiece identification, positioning, and precision programming.
- Easy Maintenance: Highly integrated structure allows for centralized repair and maintenance operations.
- High Automation: High-end configuration, intelligent programming, easy operation, and automatic cutting support.
Mechanical Benefits
- Bran-new Design: Key components such as the robot and cutting head are lightened while ensuring rigidity and overall machine stability.
- Vertical Structure: Provides stable support and enhances rigidity, enabling cutting of large-sized and heavy workpieces.
- 3D Laser Cutting Head: Lightweight at 1.45kg, featuring high-quality laser beam, precision focus, fast cutting speed, and an anti-collision mechanism for safety.
- Auxiliary Devices: Paired with a positioner to accurately rotate and position workpieces, improving handling of complex tasks.
Control System Benefits
The self-developed intelligent control system enables users to easily edit the cutting path of 3D workpieces.
- Offline Programming: Allows importing of 3D models for offline programming—ideal for complex-shaped workpieces.
- Complex Workpiece Programming: Enables creation of programs that are not feasible through manual teaching, offering greater speed and precision.
- Rich in Functions: One-click cutting path generation, even for intricate workpieces and processes.
Get In touch
Technical Parameters
| Model | 3015NP |
|---|---|
| Laser Power (kW) | 3~12 |
| Working Area (L*W, mm) | 3050*1530 |
| X/Y-axis Positioning Accuracy (mm) | ±0.05 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.02 |
| Max No-load Speed (m/min) | 120 |
| Max Acceleration (G) | 1.2 |
| Max Load of Platform (kg) | 1100 |
| Overall Dimensions (L*W*H, mm) | 4360*2760*1800 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
Get In touch
Robot setup mode
The robot may be installed on floor, hung upside down or slantwise. In this way, it is easy to maintain, helps to save space and become more flexible while fulfilling its cutting tasks.
Get In touch
What is laser cutter and how does it work?
After technical and functional upgrades, this model boasts rich functions and stable performance, providing customers with fast and high-quality cutting of medium-thin sheets.
The moving motor uses the latest locking structure to make sure of perfect dynamic performance during high-speed movement, so that the machine can cut into various shapes while meeting precision requirements.
What materials are suitable for cutting with a laser cutter?
After technical and functional upgrades, this model boasts rich functions and stable performance, providing customers with fast and high-quality cutting of medium-thin sheets.
The moving motor uses the latest locking structure to make sure of perfect dynamic performance during high-speed movement, so that the machine can cut into various shapes while meeting precision requirements.
How should a customer choose a laser cutter that exactly meets his needs?
After technical and functional upgrades, this model boasts rich functions and stable performance, providing customers with fast and high-quality cutting of medium-thin sheets.
The moving motor uses the latest locking structure to make sure of perfect dynamic performance during high-speed movement, so that the machine can cut into various shapes while meeting precision requirements.
What is the cutting capability of lasers of different powers?
The power of a fiber laser directly impacts its cutting capabilities. Fiber lasers with different power levels are suitable for various material thicknesses and types. The following article provides an overview of the cutting capabilities for the main power ranges: Cutting Capacity and Speed of 1.5kW-80kW Fiber Lasers
What should you pay attention to while maintaining a laser cutter?
Laser cutter can cut a wide range of materials, incl. stainless steel, carbon steel, alloy steel, silicon steel, aluminum, aluminum alloy, galvanized sheet, aluminum-zinc plate, pickled sheet, titanium, and other metal sheets. They can be applied in most metalworking industries, such as sheet metal working, kitchenware, aerospace, electrical cabinet, household kitchenware, automotive parts, construction and agricultural machinery, and more.
What advantages does a laser cutter have compared to other traditional cutting modes?
Laser cutting replaces traditional mechanical blades with an invisible beam of laser, offering high precision, fast cutting, no limitation on cutting patterns, automatic nesting to save materials, smooth cut edges and low operating costs. It is gradually improving or replacing traditional metal cutting processes.
* The mechanical parts of laser cutting head don’t contact workpiece, preventing surface scratches during operation.
* Laser cutting is fast, with smooth and flat edges that typically require no further processing.
* The heat-affected zone is small, resulting in minimal deformation of sheet and narrow cutting seams (0.1-0.3mm).
* Cuts have no mechanical stress nor shear burrs.
* High cutting precision and good repeatability without damaging the material surface.
* CNC programming allows for the processing of any flat pattern and the cutting of large entire sheet without the need for molds, saving both time and costs.
What is the warranty period of laser cutter?
The complete machine is under 2-year warranty. Its main accessories and consumables will be replaced depending on their specific service life. We also provide original accessories for global users, with quotes available within 24h and delivery within 3-7 working days. The change of these accessories will be given priority to our nearby subsidiaries or local service centers.
Does laser tube cutting machine have auto-correction function?
Yes. Our machines are usually equipped with advanced CNC systems that use capacitance centering to measure tube’s actual size and automatically calibrate to align the tube profile with its model. It also features real-time compensation for tube deviation, reducing requirements for tube clamping and improving the tube piercing accuracy.
