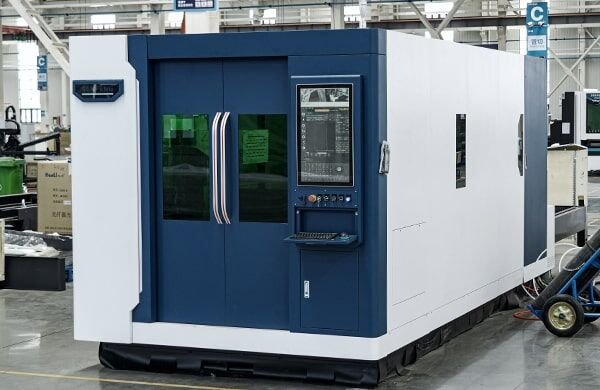

6kW-30kW High-power Plate Laser Cutter H Series
A high-power high-performing machine recently upgraded in 2024. Ranging from 6kW to 30kW, it is suit to cut medium-thick plate (≥20mm) and featured by fast speed and high precision. Needing much less working time and costs, it has developed into the first choice for users who pursue for high cutting efficiency.
6-30 [kW] Laser power
3080*1530-12550*2830 [mm] Plate size
180 [m/min] Max no-load speed
3000-16000 [kg] Load of platforms
Competitive Strengths
Performance Benefits
This machine works stably and has good dynamic performance, so as to serve users for a long time at ultra-high power.
- Cut medium-thick plate
6-90mm stainless steel, 5-80mm carbon steel, 5-60mm AL alloy, 5-30mm brass
- Multiply cutting speed
About 3-5 times faster than other plate laser cutters
- High degree of intelligence
Top configurations in both software and hardware, in particular some unique functions, so its oversea market reception is rising steadily
Mechanical Benefits
- Tried-and-tested design

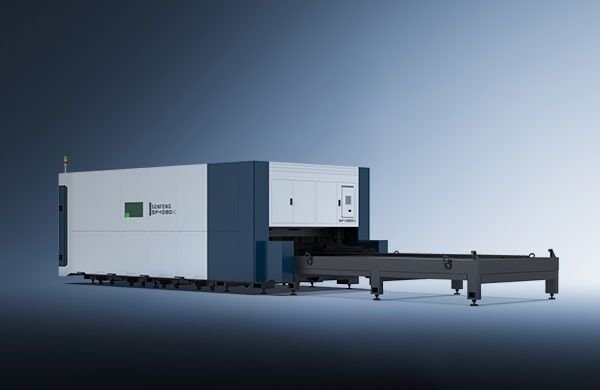

Double exchange platforms available to save waiting time for loading & unloading
Adopt hollow machine tool and graphite plates as fire prevention
Aviation-grade AL beam at high strength, enabling its cutting into various shapes at high speed

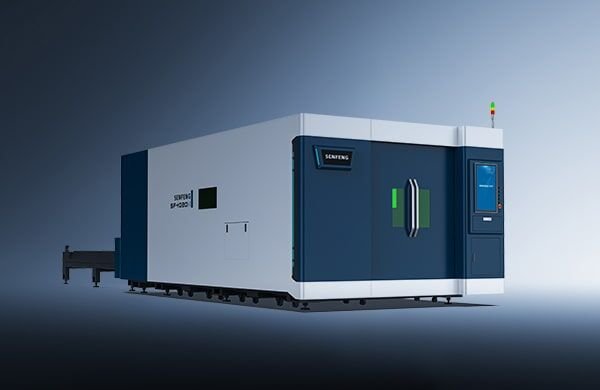

Fully-enclosed structure, with flip-in air door and dust curtain for safety and environmental protection
- Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high acceleration (2.8G) and positioning accuracy (±0.05mm).
- High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like 600° high annealing
Control System Benefits
This professional CNC system is internally installed with many functions to easily cut plates at different thicknesses in different work conditions.
- Lightning-fast piercing
Fast to pierce through thick plates at high quality
- Visual detection of residues
Further use of residues to minimize plate waste
- Visual collision avoidance
All-round monitoring without dead zone, making cutting safer
Get In touch
Technical Parameters
| Main Parameters | Model | ||||||
| 3015H | 4020H | 6020H | 6025H | 8025H | 12025H | 12528H | |
| Laser Power (kW) | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Working Area (L*W, mm) | 3080*1530 | 4050*2030 | 6050*2030 | 6050*2530 | 8050*2530 | 12050*2530 | 12550* 2830 |
| X/Y-axis Positioning Accuracy (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Max No-load Speed (m/min) | 180 | 180 | 180 | 180 | 180 | 169 | 180 |
| Max Load of Platforms (kg) | 3000 | 3200 | 4750 | 6000 | 8000 | 14000 | 16000 |
| Overall Dimensions (L*W*H, mm) | 8440*2270*2340 | 10876*3363*2515 | 14887*3363*2515 | 14740*3893*2515 | 19075*3893*2515 | 27927*3893*2515 | 28877*4233*2515 |
| Power Supply | Three-phase 380V, 50Hz/60Hz | ||||||
Get In touch
1. Intelligent pallet racks
Store, transfer, warehouse-in/out, load and unload plates automatically, making for efficiency gains and space utilization
Get In touch
What is laser cutter and how does it work?
After technical and functional upgrades, this model boasts rich functions and stable performance, providing customers with fast and high-quality cutting of medium-thin sheets.
The moving motor uses the latest locking structure to make sure of perfect dynamic performance during high-speed movement, so that the machine can cut into various shapes while meeting precision requirements.
What materials are suitable for cutting with a laser cutter?
After technical and functional upgrades, this model boasts rich functions and stable performance, providing customers with fast and high-quality cutting of medium-thin sheets.
The moving motor uses the latest locking structure to make sure of perfect dynamic performance during high-speed movement, so that the machine can cut into various shapes while meeting precision requirements.
How should a customer choose a laser cutter that exactly meets his needs?
After technical and functional upgrades, this model boasts rich functions and stable performance, providing customers with fast and high-quality cutting of medium-thin sheets.
The moving motor uses the latest locking structure to make sure of perfect dynamic performance during high-speed movement, so that the machine can cut into various shapes while meeting precision requirements.
What is the cutting capability of lasers of different powers?
The power of a fiber laser directly impacts its cutting capabilities. Fiber lasers with different power levels are suitable for various material thicknesses and types. The following article provides an overview of the cutting capabilities for the main power ranges: Cutting Capacity and Speed of 1.5kW-80kW Fiber Lasers
What should you pay attention to while maintaining a laser cutter?
Laser cutter can cut a wide range of materials, incl. stainless steel, carbon steel, alloy steel, silicon steel, aluminum, aluminum alloy, galvanized sheet, aluminum-zinc plate, pickled sheet, titanium, and other metal sheets. They can be applied in most metalworking industries, such as sheet metal working, kitchenware, aerospace, electrical cabinet, household kitchenware, automotive parts, construction and agricultural machinery, and more.
What advantages does a laser cutter have compared to other traditional cutting modes?
Laser cutting replaces traditional mechanical blades with an invisible beam of laser, offering high precision, fast cutting, no limitation on cutting patterns, automatic nesting to save materials, smooth cut edges and low operating costs. It is gradually improving or replacing traditional metal cutting processes.
* The mechanical parts of laser cutting head don’t contact workpiece, preventing surface scratches during operation.
* Laser cutting is fast, with smooth and flat edges that typically require no further processing.
* The heat-affected zone is small, resulting in minimal deformation of sheet and narrow cutting seams (0.1-0.3mm).
* Cuts have no mechanical stress nor shear burrs.
* High cutting precision and good repeatability without damaging the material surface.
* CNC programming allows for the processing of any flat pattern and the cutting of large entire sheet without the need for molds, saving both time and costs.
What is the warranty period of laser cutter?
The complete machine is under 2-year warranty. Its main accessories and consumables will be replaced depending on their specific service life. We also provide original accessories for global users, with quotes available within 24h and delivery within 3-7 working days. The change of these accessories will be given priority to our nearby subsidiaries or local service centers.
Does laser tube cutting machine have auto-correction function?
Yes. Our machines are usually equipped with advanced CNC systems that use capacitance centering to measure tube’s actual size and automatically calibrate to align the tube profile with its model. It also features real-time compensation for tube deviation, reducing requirements for tube clamping and improving the tube piercing accuracy.
